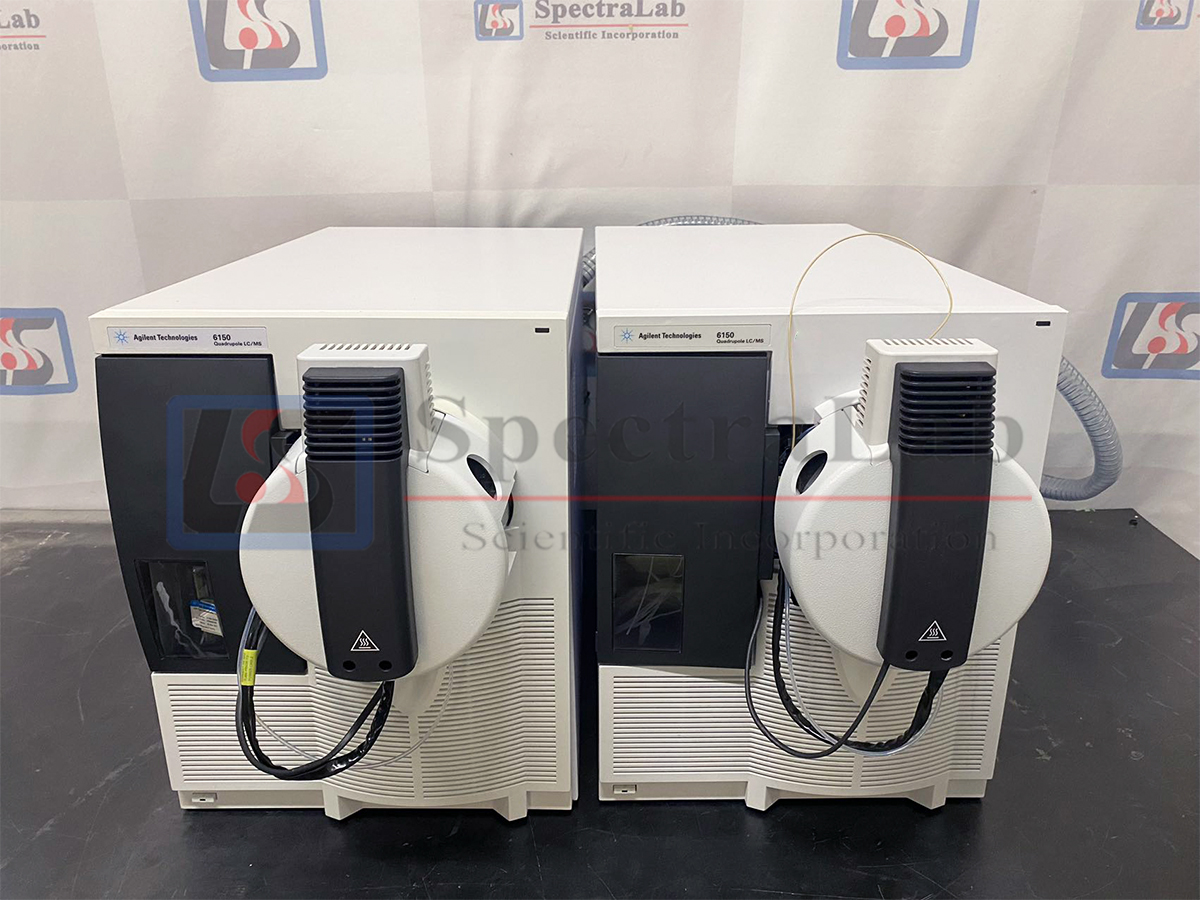

The 6150B Single Quadrupole LC/MS achieves sensitivity and resolution specifications with autotune. The 6150B Single Quadrupole LC/MS System includes Agilent G6150B single quadrupole mass spectrometer, Agilent Jet Stream ion source, Agilent OpenLab ChemStation edition software, and data system with PC, display, and printer.
Parameter Measure Specification
– Maximum scan speed: 6,000 Da/sec
– SIM sensitivity, ESI positive: Signal-to-noise ratio > 650:1
– SIM sensitivity, APCI positive: Signal-to-noise ratio > 100:1
– Polarity switching: 20 msec
– Mass resolution (Autotune): Unit resolution
– Mass stability: < 0.1 amu or 100 ppm, whichever is larger
– Mass accuracy: ± 0.13 Da
– Minimum SIM dwell time: 5 msec
– Maximum SIM transitions: 100
– Dynamic range: > 6 × 106
– Mass range: 2–1,350 m/z
General System Specification
- Single point of control
- Single-point data system method capability with full control of Agilent 1200 Series LC Systems and 6100 Series Single Quadrupole LC/MS Systems
- Time programming
- SIM ion selection
- Scan functions
- Fragmentor voltage
- External CAN valves
- Wide range of ionization sources
- Electrospray (ESI)
- Multimode source (simultaneous ESI and APCI)
- Atmospheric pressure chemical ionization (APCI)
- ChipCube for integrated nanoLC
- Atmospheric pressure photoionization (APPI)
- Detector
- High energy conversion dynode and high gain electron multiplier horn
- Vacuum System
- One turbo-molecular pump with one mechanical pump
