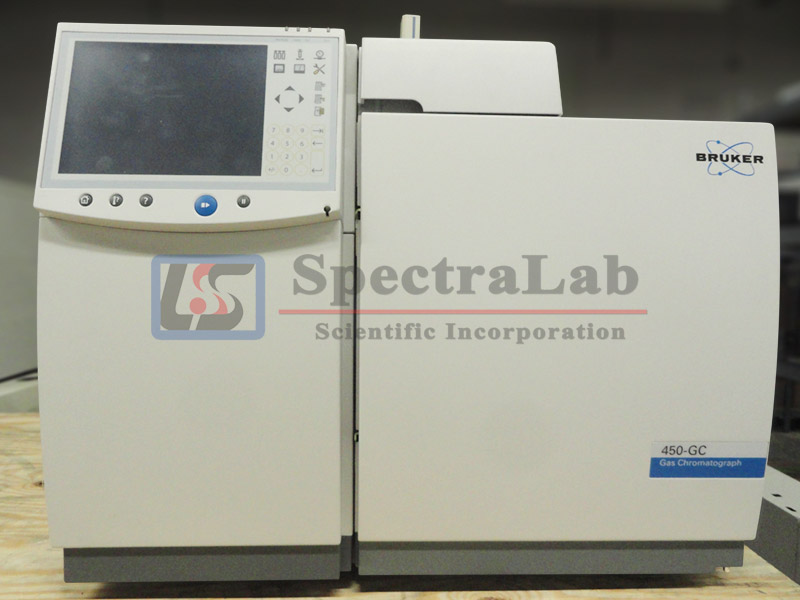

The Bruker corporation 450 GC is a powerful sample preparation and analysis tool for the Analytical Chemist. We can install any detector and autosampler you need.
Dimensions and Weights
- Size*: Height: 53 cm (20.9 in.),
- Width: 66 cm (26.0 in.),
- Depth: 56 cm (22.0 in.)
- Weight*: 43 kg (95 lb)
* Typical values
Environmental Conditions
- Operating temperatures: 10 °C to 40 °C.
- Operating humidity (relative): 5 % to 95 %
- Line voltage requirements: 101 V, 120 V, 230 V
- (±10 % nominal)
Column Oven
- Dimensions: 28 cm (w) x 20 cm (d) x 28 cm (h)
- Temperature range:
- Ambient +4 °C to 450 °C
- With liquid N2: -100 °C to 450 °C
- With liquid CO2: -60 °C to 450 °C
- Temperature program ramps/holds: 24/25
- Maximum temperature ramp rate: 120 °C/min for all voltages
- Cool down rate: 400 °C to 50 °C in 4.5 minutes
- Temperature set-point resolution: 1 °C
General Specifications
GC Control:
- External events (digital output):
- 7 standard
- 8 optional
- Max number of timed events: 15 x 99
- Heated zones: 7 (including column oven)
Methods:
- Maximum stored methods: 50 (max 30 alphanumeric characters)
Logging:
- Run log file (stored with the chromatogram when using Galaxie or MS Workstation)
Error log file
Local Display:
- TFT full color screen
- VGA resolution (640 x 480)
- Size 8.4” (20 cm)
Local Control:
- Touch screen
- Hard keys
- Languages: English, German, French, Spanish, Italian, Portuguese, Cyrillic, Kanji, Chinese, Thai and Korean (Other languages on request)
Local automation:
- Method lines: 25
- Modes:
- Infinite looping
- Dual and duplicate injection
- System operational qualities:
- High Inertness: sample path UltiMetal treated, optional
- Low level detection assurance: purged valves, optional
This Bruker 450 GC is in great shape. It has been tested at SpectraLab Scientific.
A 90 day warranty is included.
