The Bruker corporation 450 GC is a powerful sample preparation and analysis tool for the Analytical Chemist. We can install any detector and autosampler you need.
Dimensions and Weights
Size*: Height: 53 cm (20.9 in.),
Width: 66 cm (26.0 in.),
Depth: 56 cm (22.0 in.)
Weight*: 43 kg (95 lb)
* Typical values
Environmental Conditions
Operating temperatures: 10 °C to 40 °C.
Operating humidity (relative): 5 % to 95 %
Line voltage requirements: 101 V, 120 V, 230 V
(±10 % nominal)
Column Oven
Dimensions: 28 cm (w) x 20 cm (d) x 28 cm (h)
Temperature range:
Ambient +4 °C to 450 °C
With liquid N2: -100 °C to 450 °C
With liquid CO2: -60 °C to 450 °C
Temperature program ramps/holds: 24/25
Maximum temperature ramp rate: 120 °C/min for all voltages
Cool down rate: 400 °C to 50 °C in 4.5 minutes
Temperature set-point resolution: 1 °C
General Specifications
GC Control:
External events (digital output):
– 7 standard
– 8 optional
Max number of timed events: 15 x 99
Heated zones: 7 (including column oven)
Methods:
Maximum stored methods: 50 (max 30 alphanumeric characters)
Logging:
Run log file (stored with the chromatogram when using Galaxie
or MS Workstation)
Error log file

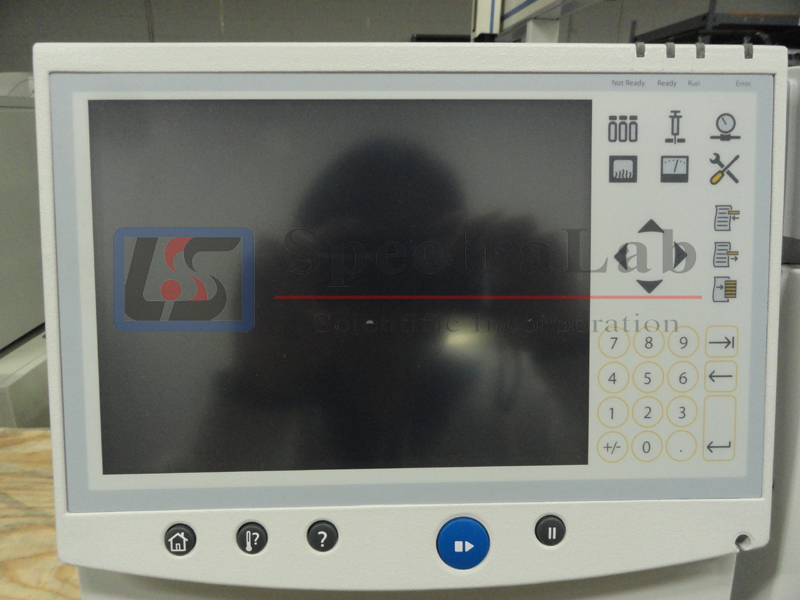

Local Display:
– TFT full color screen
– VGA resolution (640 x 480)
– Size 8.4” (20 cm)
ocal Control:
– Touch screen
– Hard keys
Languages: English, German, French, Spanish, Italian,
Portuguese, Cyrillic, Kanji, Chinese, Thai and Korean
(Other languages on request)
Local automation:
Method lines: 25
Modes:
– Infinite looping
– Dual and duplicate injection
System operational qualities:
High Inertness: sample path UltiMetal treated, optional
Low level detection assurance: purged valves, optional

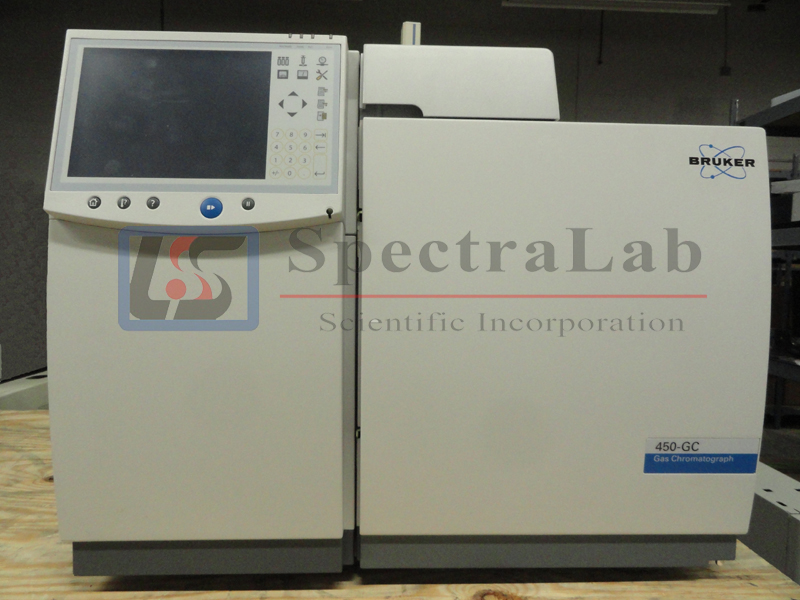

This Bruker 450 GC is in a great shape. It has been tested at SpectraLab Scientific.
A 90 day warranty is included.
