Specification
|
|
|
Eluent Selection
|
Four different mobile phase components; each can be proportioned from 0-100%
|
|
Pump
|
Dual-piston, variable speed, 100 µL (standard bore), 25 µL(microbore) stroke, user-selectable constant pressure or constant flow feedback control
|
|
Flow Rate
|
Standard bore pump head: 0.04 to 10.0 mL/min, linearly variable in increments of 0.01 mL/min
Microbore pump head: 0.01 to 2.50 mL/min, linearly variable in increments of 0.01 mL/min
|
|
Operating Pressure
|
35 MPa (5000 psi) maximum
|
|
Pressure Resolution
|
0.07 MPa (10 psi)
|
|
High Pressure Limit
|
0 to 35 MPa (0-5000 psi) in increments of 0.05 MPa (7.25 psi); trips instantaneously
|
|
Low Pressure Limit
|
0. to 35 MPa (0 to 5000 psi) in increments of
0.05 MPa (7.25 psi); trips after a time-out of 0.4 mL for thestandard bore GP40 or 0.1 mL for the microbore GP40
|
|
Delay Volume
|
Approximately 0.92 mL for standard bore pump heads or 0.72 mL for microbore pump heads, measured from the proportioning valve up to, and including, the 61-cm (24-in) pressure transducer outlet line
|
|
Channels
|
4-channel membrane vacuum degas
|
|
Materials
|
Wetted materials, PEEK, PTFE
|
|
Performance
|
>69% degas ratio @ 1 or 3 mL/min with 8.5 ppm O2 at input 0.200 Kg F/cm2 flow resistance @ 10 mL/min
|

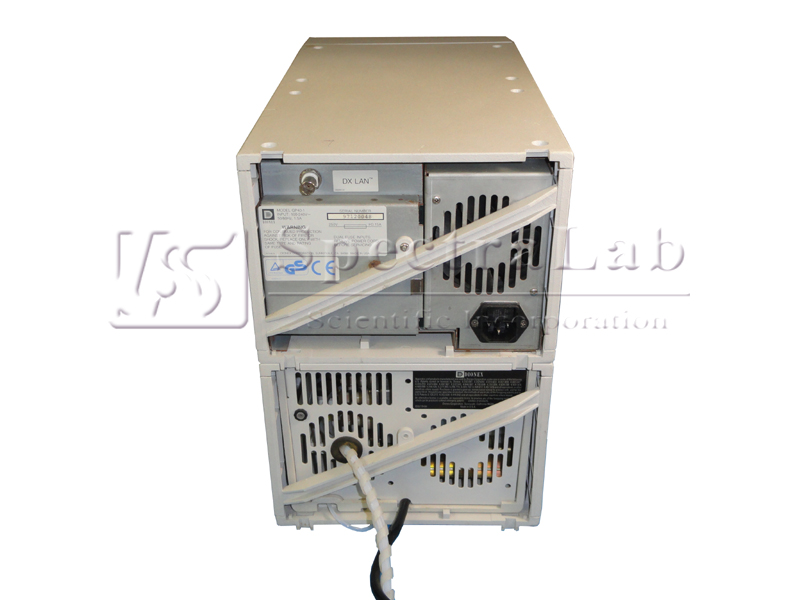

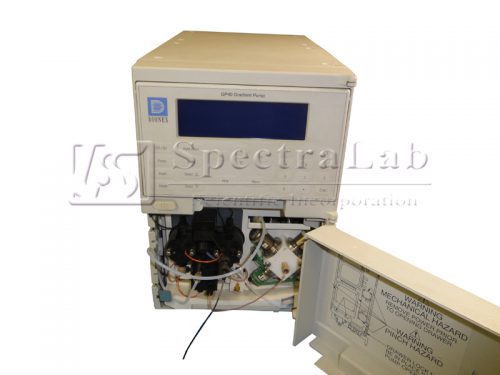

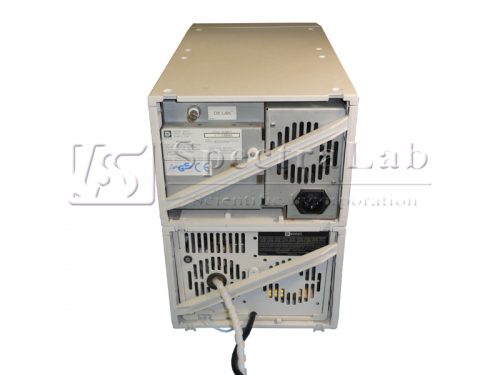

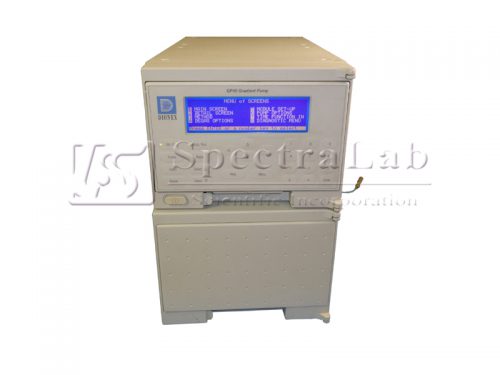

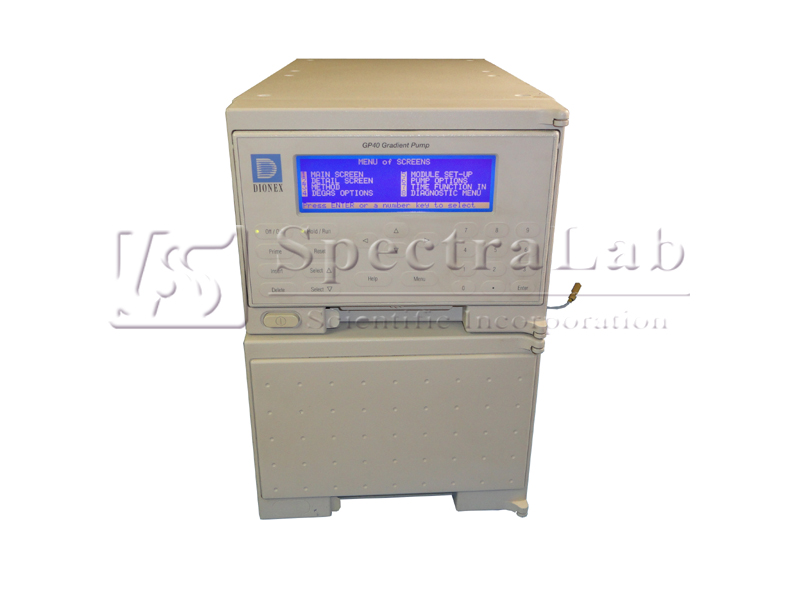

This refurbished DIONEX GP40 Gradient Pump. It has been tested at SpectraLab Scientific.
A 90-day warranty is included. Multiple available.
