Specifications | Dimensions (w x d x h in cm) |

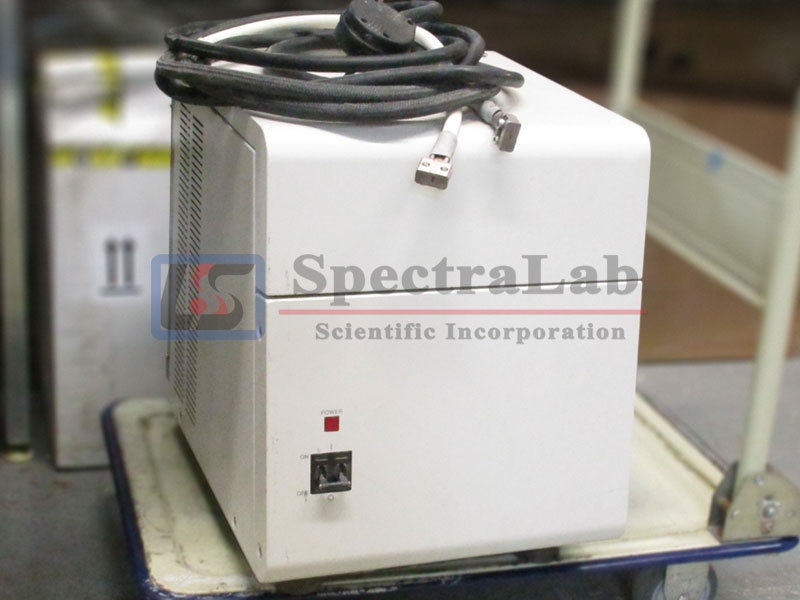

123 x 60 x 52 (spectrometer)37 x 56 x 45 (furnace controller) |
Weight (kg) |
180 (spectrometer); 70 (furnace controller) |
Spectrometer |
0.45-m Czerny-Turner monochromator |
Photometer | single beam, lamp modulation 1500/1800 Hz |
Grating |
1800 lines/mm, blazed at 200 nm |
Wavelength range |
190-900 nm |
Bandpass |
automated slit selection 0.09, 0.2, 0.4 and 1.3 nm |
Detector |
PMT R456 |
Background correction | Zeeman, permanent magnet around flame (0.9 Tesla) and furnace (1.0 Tesla) |
Atomizer |
Premix fishtail type burner (Air/Acetylene and N2O/Acetylene); Graphite furnace (flame and furnace on the same beam) |
Sample introduction | |
Short term precision (RSD for 10 replicates) |
|
Long term precision (RSD for 4 hours) |
|
Sensitivity | |
Detection limits (3s, µg/L) |
|
Accessories |
Hydride generator, high pressure nebulizer, Ti-burner head, High-temperature burner |
Special features |
flame and furnace on the same beam, 8-lamp turret, automated lamp selection and adjustment, lamp pre-warming |

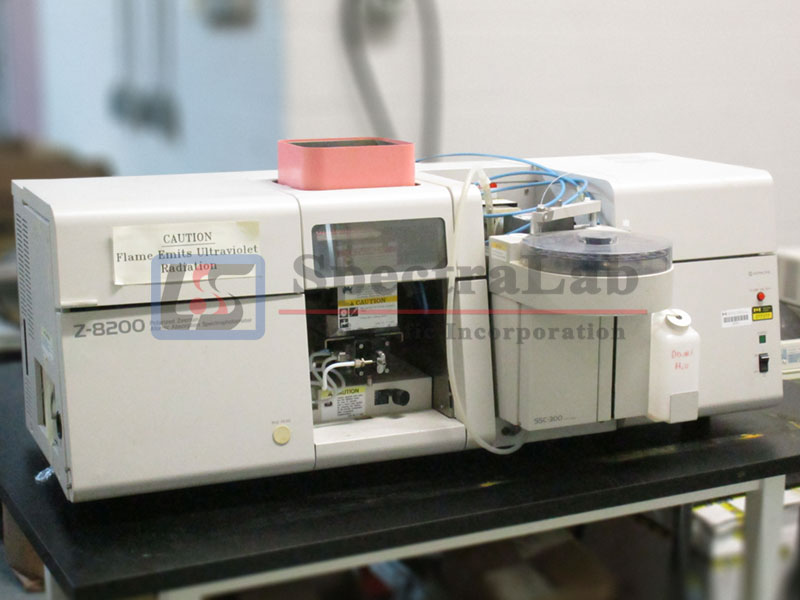

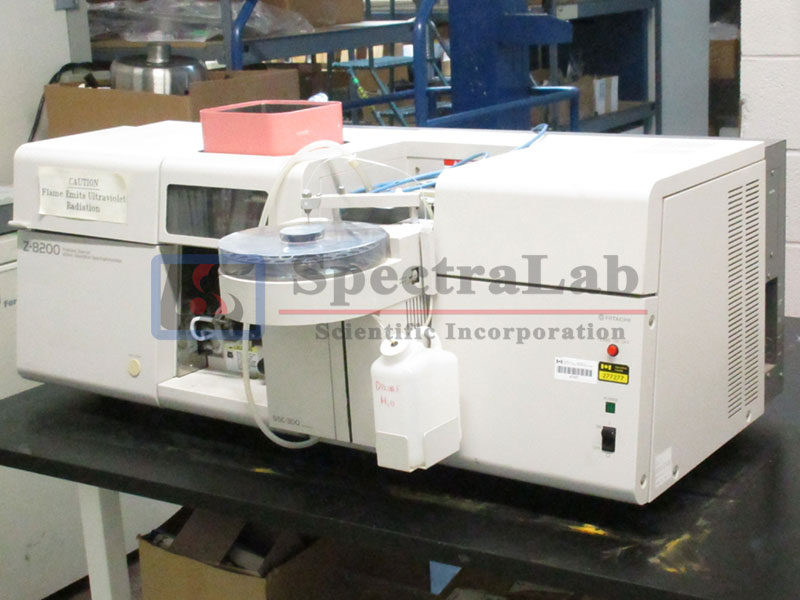

This Z-8200 Polarized Zeeman Atomic Absorption Spectrophotometer & Hitachi SSC-300 is in great condition. It has been tested and refurbished here at SpectraLab Scientific.
Includes:

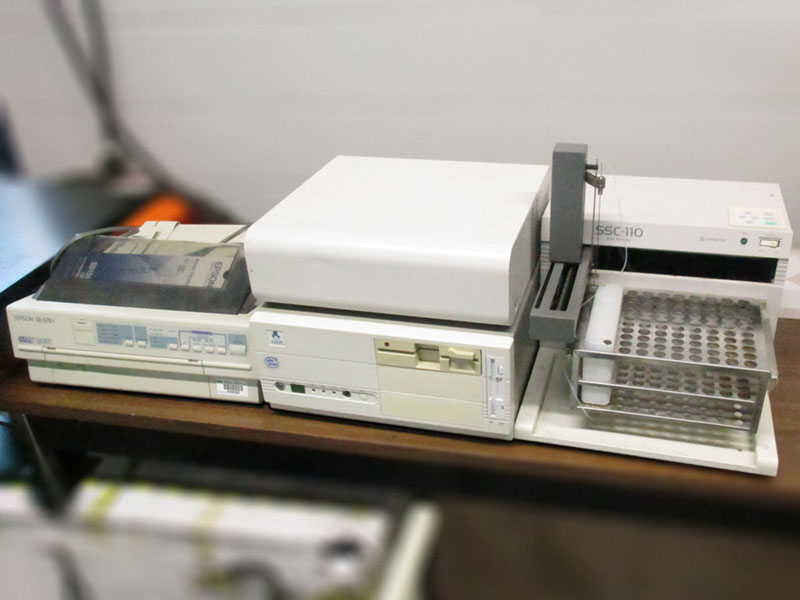

- Hitachi SSC-110 Autosampler
- Epson LQ-570+ printer
- Pump
- Intel PC & software
- A 90-day warranty
