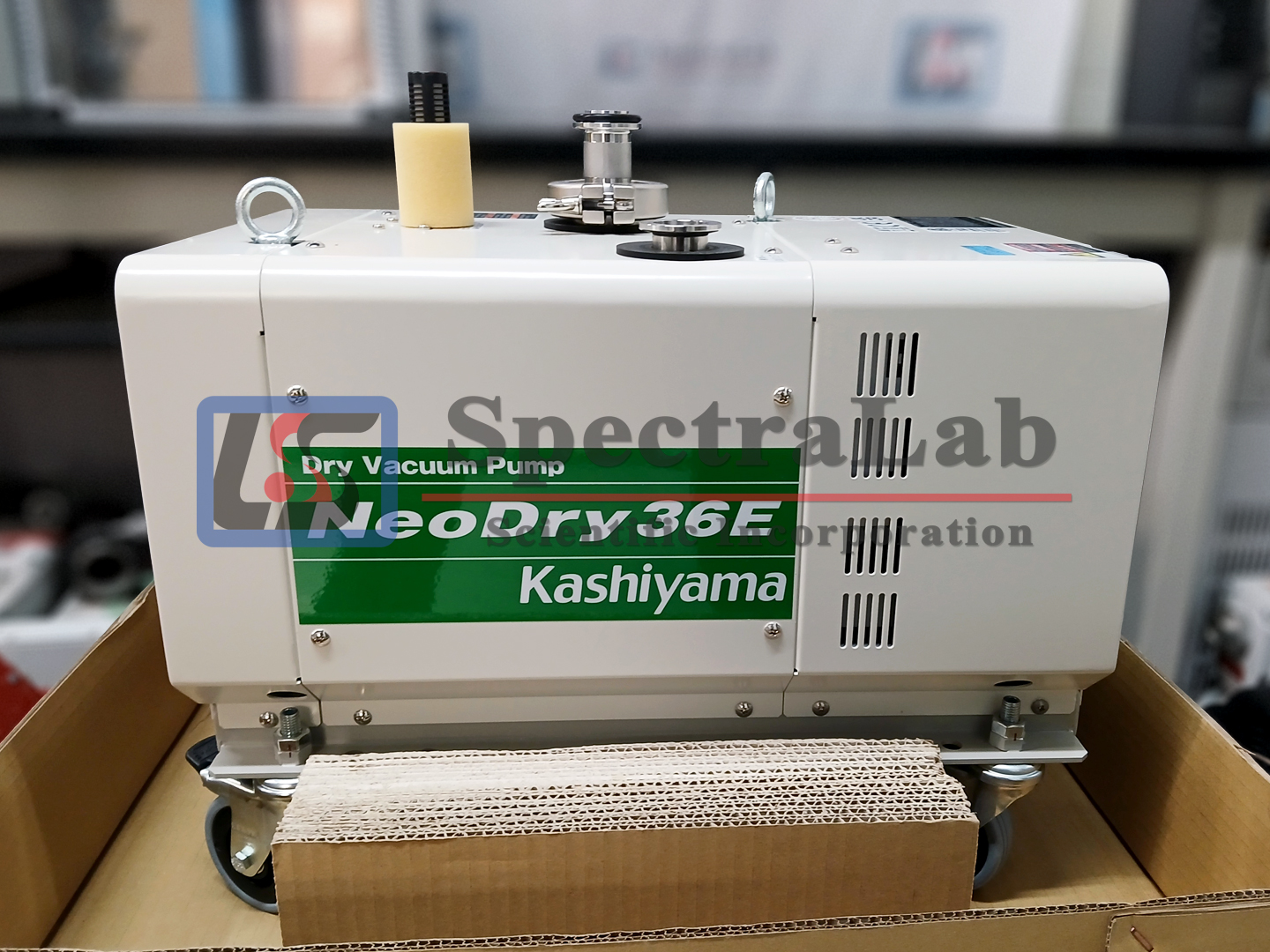

The NeoDry 36E Pump is air-cooled and works well in high water vapor conditions. NeoDry Pumps have non-contact internal components with no tip seals to replace.
Typical applications for the NeoDry 36E:
- Leak Detectors
- Electronic Microscopes
- Mass Spectrometers
- cryopumps
- Turbo Pumping Stations
- Vacuum Coating
- Optical Spectrometers
Technical Data | NeoDry 36E |
Max Pumping Speed L/min / CFM | 600 / 21.2 |
Ultimate Vacuum Pa / mTorr |
≤ 1.0 / 7.5 |
Max Inlet Pressure | Atmospheric |
Connection Size Intake/Exhaust |
NW40/NW25 |
Rated Motor Output (kW) | 0.75 |
Power Source (50/60 Hz) 1-Phase |
100-120 VAC, 200-240 VAC |
Power Source (50/60 Hz) 3-Phase |
200-240 VAC |
Gas Ballast | Available (N2 or Air) |
Allowable Max Moisture Grams / Hour |
350 |
Noise (dB(A)) | ≤ 58 |
Weight (Kg / Lbs) | 54 / 119 |
