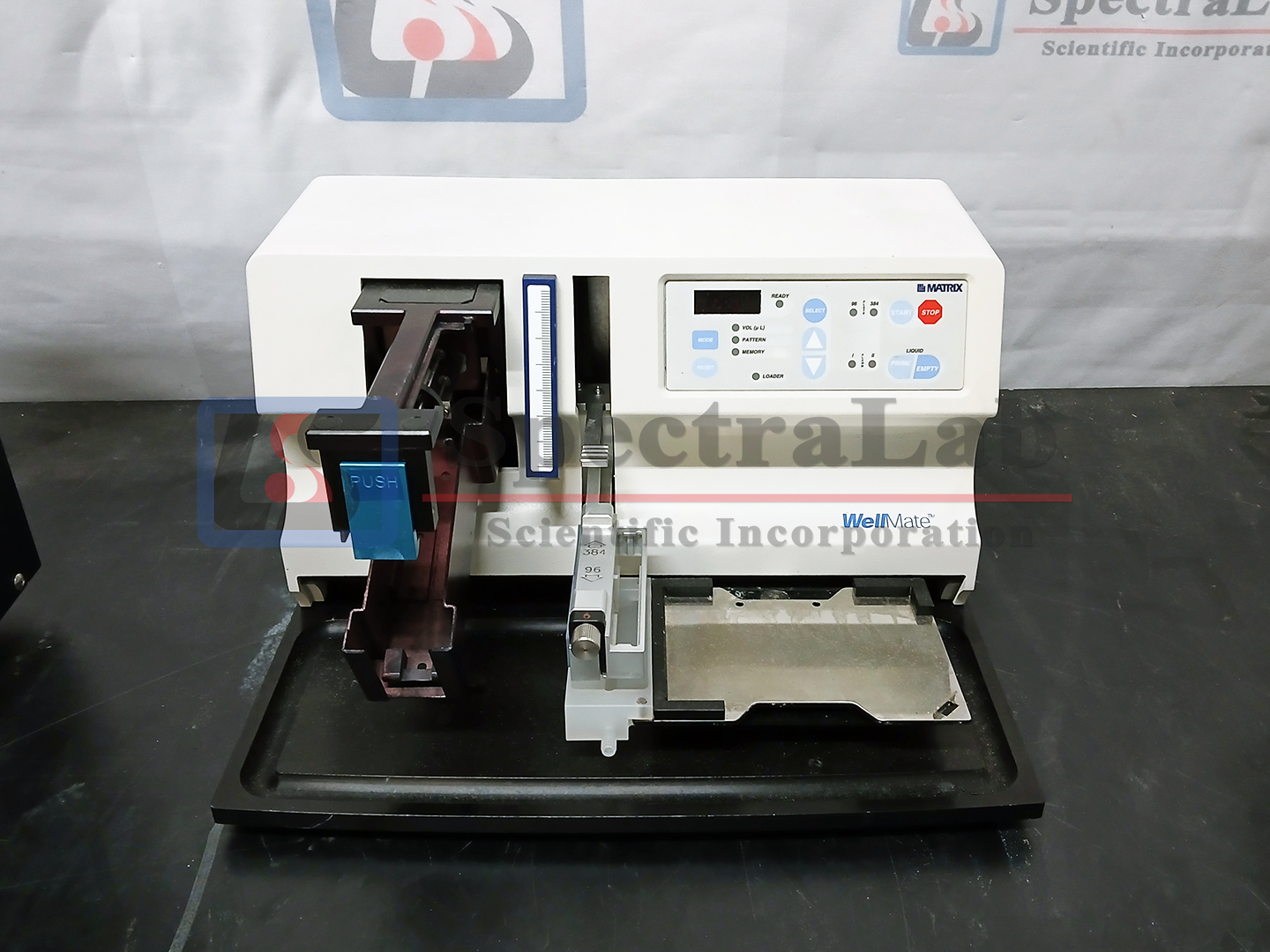

Streamline plate filling procedures with the Matrix WellMate and increase accuracy and precision compared to handheld pipetting.
The Matrix WellMate offers supreme flexibility for all microplate filling needs. With a volume range of 1 to 2000 μl, the Matrix WellMate accommodates a wide selection of labware and improves cost-efficiency with disposable, pre-sterilized and pre-calibrated tubing cartridges. Programming flexibility allows any member of the laboratory to utilize the instrument and the optional plug-and-play Matrix WellMate Stacker provides walk-away capability for all throughput needs.
Specifications
Dimensions (W x D x H) | 14.5″/ 36.8 cm x 12.0″/ 30.5 cm x 8.5″/ 21.6 cm |
Weight | 24 lbs/11 kg |
Power Supply | 100 V AC or 240 V AC |
Power Consumption | 110 V, 50-60 Hz |
Plate Filling Speeds using the Matrix WellMate
Dispense Volume | 96-Well Plate | 384-Well Plate |
5 µl | 3.2 seconds | 9 seconds |
10 µl | 4.5 seconds | 11 seconds |
50 µl | 8.7 seconds | 26.5 seconds |
100 µl | 13.2 seconds | 45.5 seconds |
500 µl | 52.2 seconds | N/A |
1500 | µl 148 seconds | N/A |
