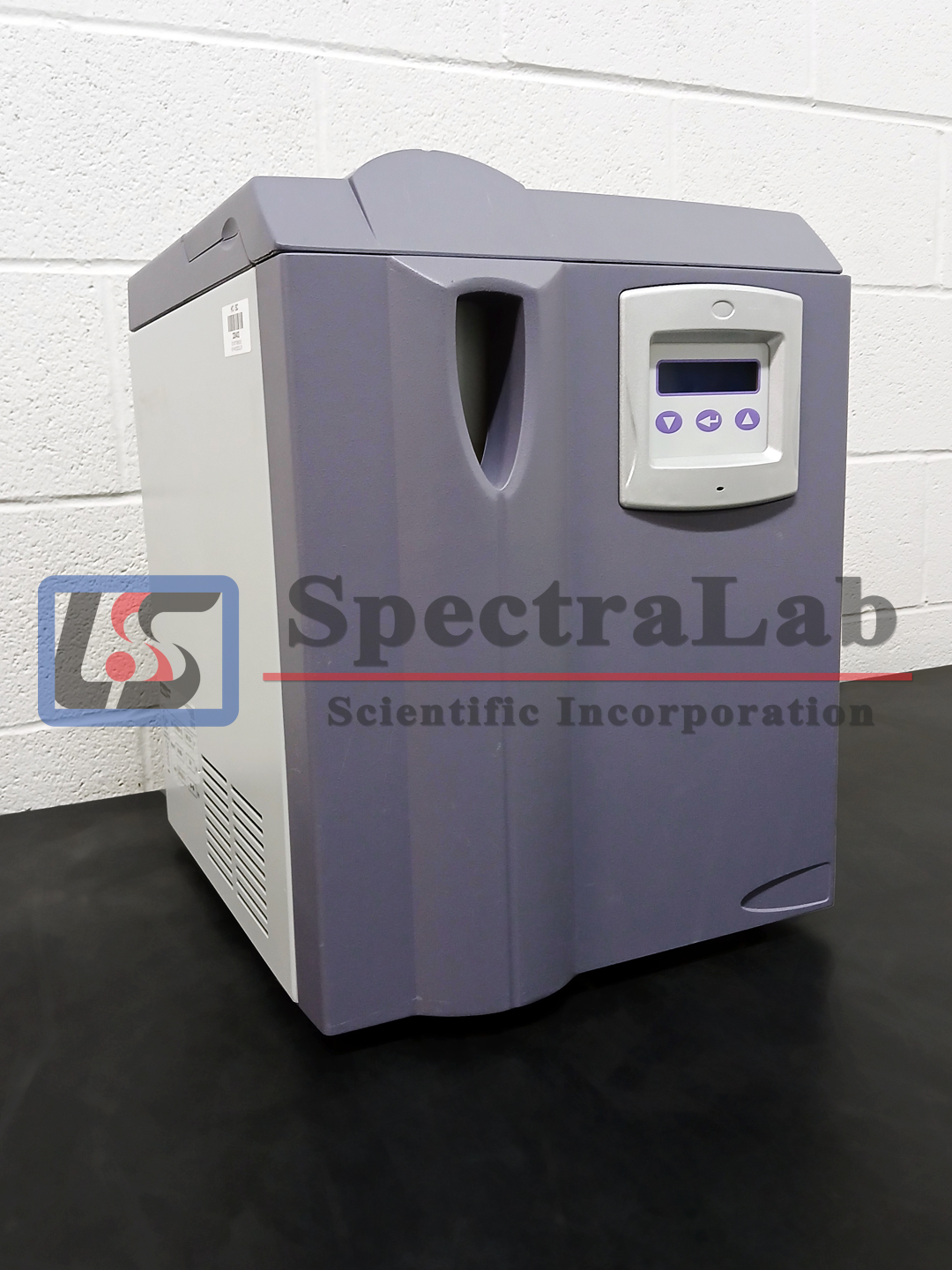

Parker Hydrogen Generator 60H-MD
For GC and GC/MS Carrier Gas Applications (>99.9999 Purity)
Technical Specifications
Brand: | Parker, domnick hunter |
Division: | Gas Separation and Filtration Division EMEA |
Gas Type Generated: | Hydrogen |
Industry: | Healthcare & Life Sciences, Industrial & Chemical Processing, Oil & Gas |
Application: | Analytical Laboratory, GC and GC/MS Carrier Gas |
Technology: | Filtration |
Product Type: | Hydrogen Gas Generator |
Flow Rate: | 160 to 1100 |
Gas Purity: | > 99.9999 |
Outlet Port Size: | 1/8 |
Port Type: | Compression (Water Drain, Water Fill: Quick Release Push-in Fitting) |
Input Voltage: | 90 to 264 VAC 50/60 Hz |
Ambient Temperature: | 5 to 40, 41 to 104 |
Inlet Pressure Rating: | View Part Number for Details. |
Weight: | View Part Number for Details. |
Height: | View Part Number for Details. |
Width: | View Part Number for Details. |
Depth: | View Part Number for Details. |
Product Series: | H-MD Series |
Options: | Auto Water Fill comes as standard on this model., Remote Monitoring/Networking |
Water Consumption: | 1.69 to 10.6 L/week (24/7 Full Flow) |
Preventive Maintenance Kit: | 24 Months: M24.HMD.0001, 6 Months: M06.HMD.0001, 60 Months: M60.HMD.0001 |
Water Quality: | Deionised. ASTM II, >1MΩ, <1µs, filtered to <100µm |
Electrical Requirements: | Yes |
Specifications Met: | n/a |
Outlet Pressure Rating: | 0.69 to 6.89, 10 to 100 |
