Includes:

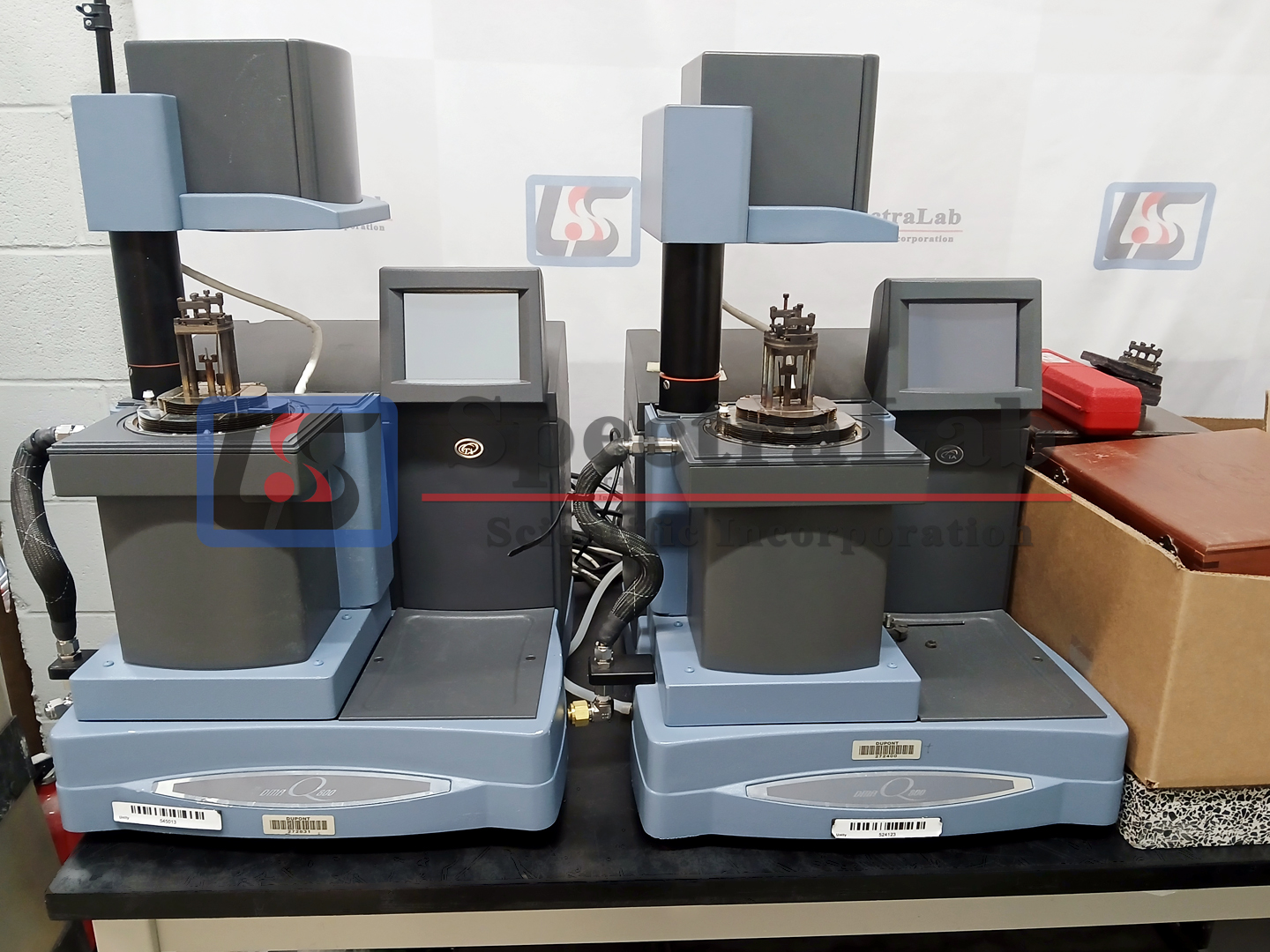

- TA Instruments DMA Q800 Dynamic Mechanical Analyzer [985001.901]
- TA Instruments Gas Cooling Accessory (GCA) [991401.905] with Liquid N₂ Dewar

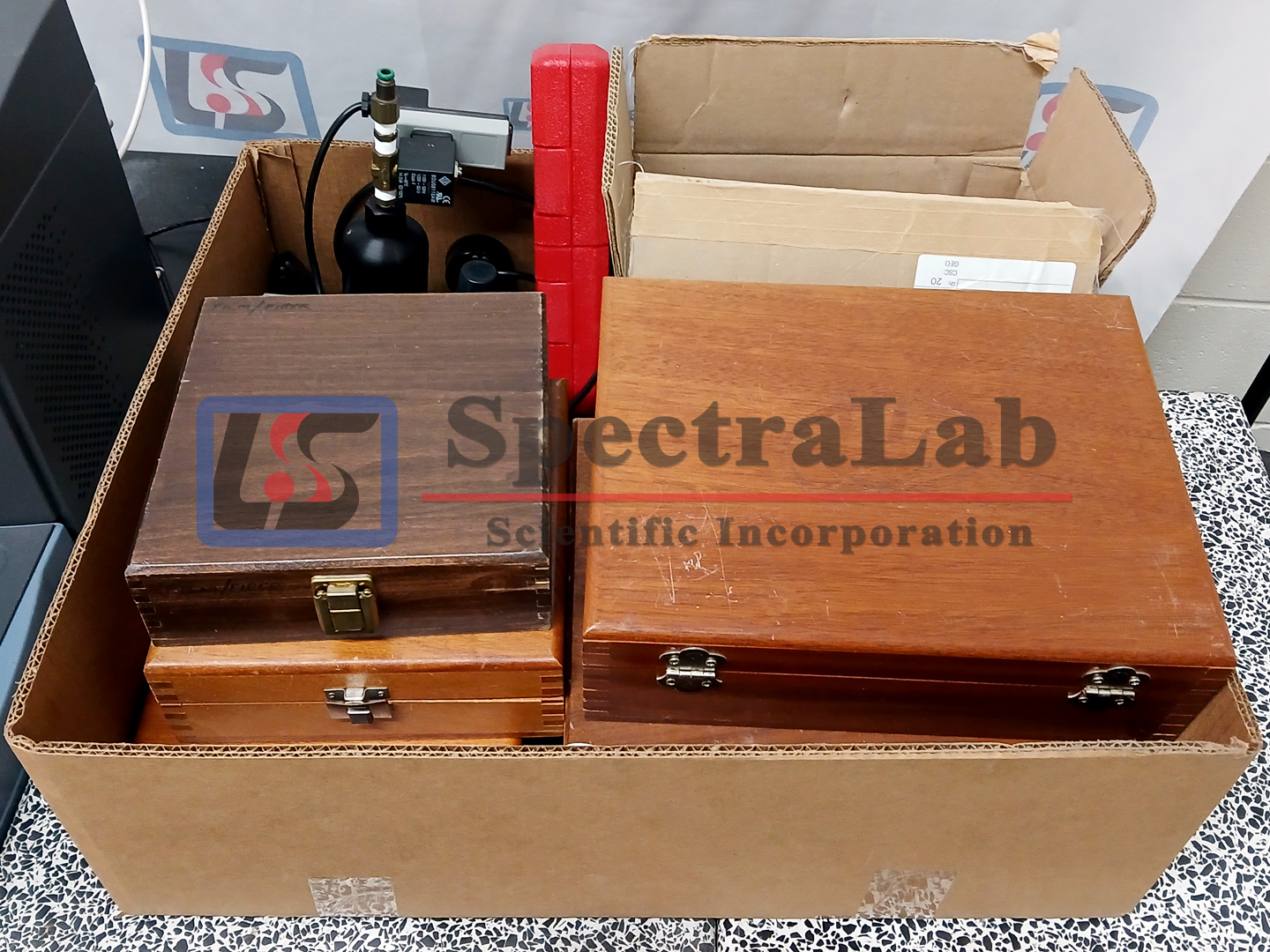

- Box of TA Instruments accessories
The Q800 utilizes state-of-the-art, non-contact, linear drive technology to provide precise control of stress, and air bearings for low friction support. Strain is measured using optical encoder technology that provides unmatched sensitivity and resolution. With its unique design, the Q800 easily outperforms competitive instruments and is ideal for high-stiffness applications, including composites.
| Specifications | ||
| Maximum Force | 18 N | |
| Minimum Force | 0.0001 N | |
| Force Resolution | 0.00001 N | |
| Strain Resolution | 1 nanometer | |
| Modulus Range | 103 to 3×1012 Pa | |
| Modulus Precision | ± 1% | |
| Tan δ Sensitivity | 0.0001 | |
| Tan δ Resolution | 0.00001 | |
| Frequency Range | 0.01 to 200 Hz | |
| Dynamic Sample Deformation Range | ± 0.5 to 10 000 µm | |
| Temperature Range | -150 to 600°C | |
| Heating Rate | 0.1 to 20°C/min | |
| Cooling Rate | 0.1 to 10°C/min | |
| Isothermal Stability | ± 0.1°C | |
| Time/Temperature Superposition | Yes | |
| RH Control | Optional | |
| Output Values | ||
| Storage Modulus | Complex/Dynamic Viscosity | Time |
| Loss Modulus | Creep Compliance | Stress/Strain |
| Storage/Loss Compliance | Relaxation Modulus | Frequency |
| Tan Delta (δ) | Static/Dynamic Force | Sample Stiffness |
| Complex Modulus | Temperature | Displacement |
| Relative Humidity (Optional) | ||

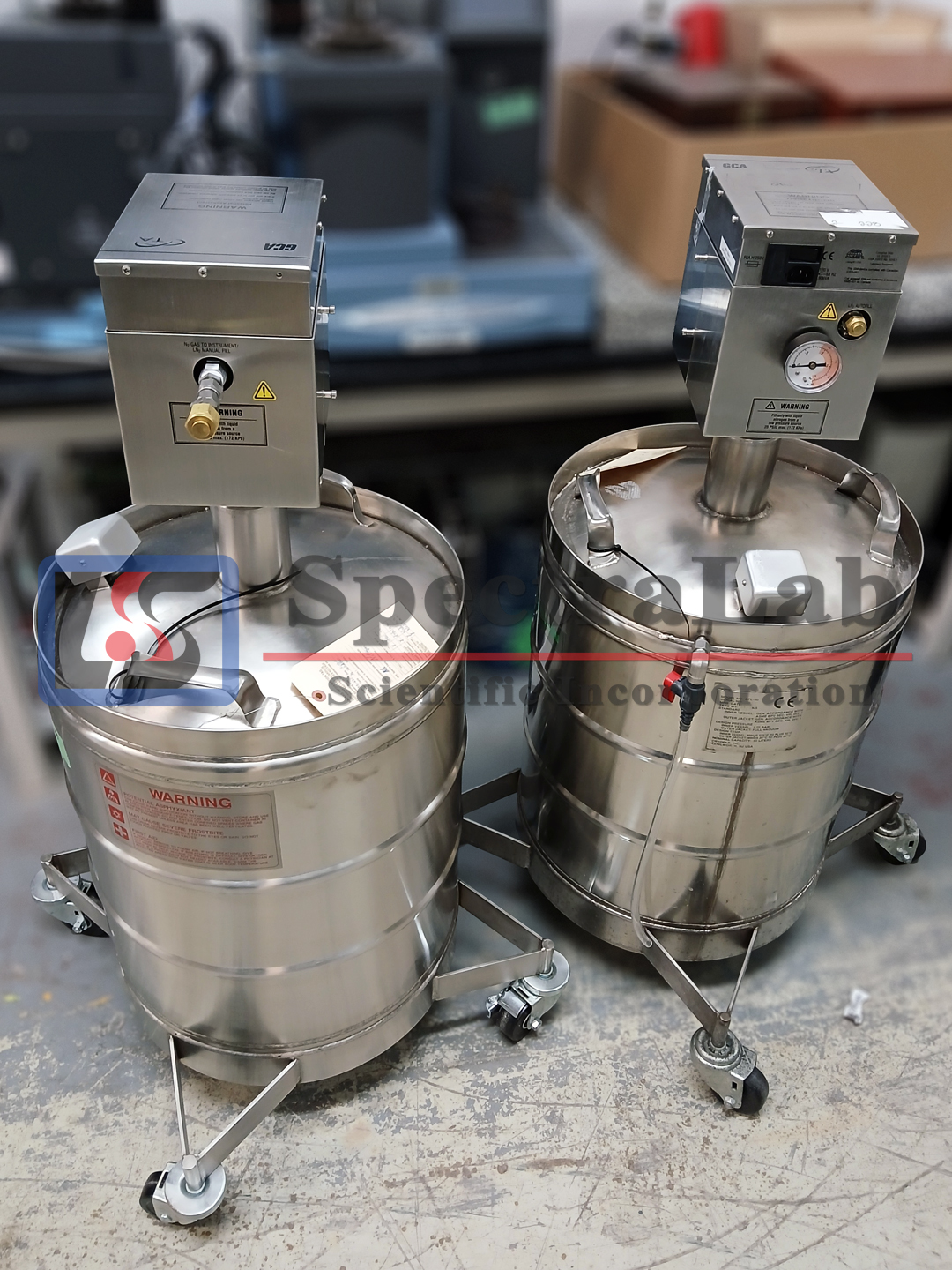

The Gas Cooling Accessory (GCA) extends the operating range of the Q800 to -150°C. The GCA uses cold nitrogen gas generated from controlled evaporation of liquid nitrogen. Automated filling of the GCA tank can be programmed to occur after the scan is complete.
The GCA will provide ballistic or controlled cooling rates over the entire operating range of the Q800 DMA (-150 to 600°C). In general, the maximum cooling rate is a function of the installed clamp and the thermal characteristics of the sample. The figure below shows the typical range* of controlled cooling rates available as a function of temperature.
