Includes:
- Waters Acquity UPLC PDA Detector
- Waters Acquity UPLC Column Manager Aux
- Waters Acquity UPLC Column Manager
- Waters Acquity UPLC Sample Manager – FTN
- Waters Acquity UPLC H-Class Quaternary Solvent Manager
- Rough Pump
- PC with software
- Waters Acquity UPLC SQ Detector/ Mass Spectrometer

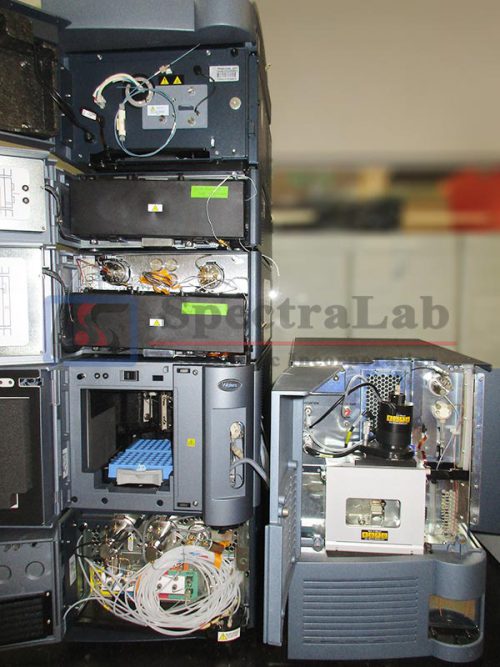

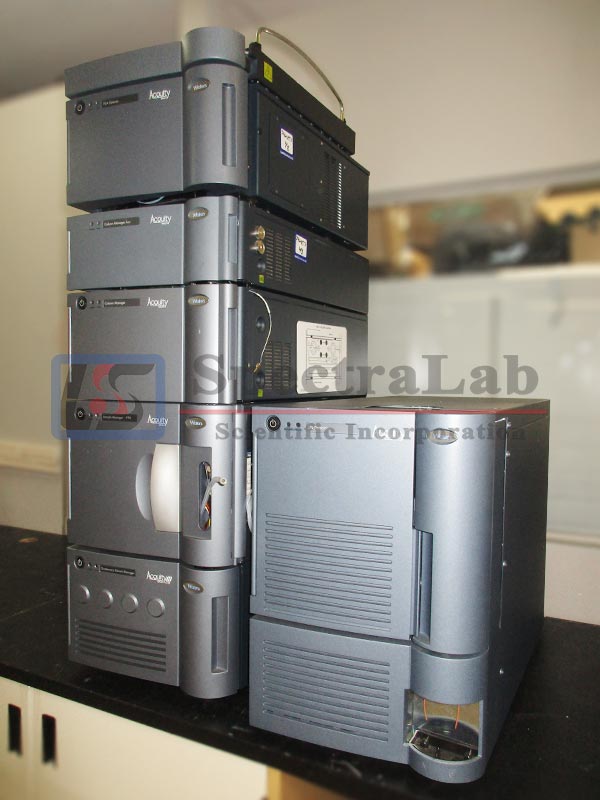

This refurbished Waters Acquity UPLC System with SQ Detector and H-Class Quaternary Solvent Manager is in great condition. It has been tested at SpectraLab Scientific.
A 90 day warranty is included.
EQUIPMENT SPECIFICATIONS
Standard | Metric | |
Model | SQD | |
Type of Mass Spec | SINGLE QUAD | |
Voltage | 230 VOLTS | 230 VOLTS |
Frequency | 50/60 HERTZ | 50/60 HERTZ |
Phase | 1 | |
Estimated Shipping Weight | 100 LBS | 45.36 kg |
Estimated Shipping Length | 30 IN | 76.20 cm |
Estimated Shipping Width | 17 IN | 43.18 cm |
Estimated Shipping Height | 24 IN | 60.96 cm |
The ACQUITY UPLC System’s ability to produce narrow peaks and spectral quality from the ACQUITY SQD allows easy identification of compounds in applications, including:
- Peak purity and impurity profiling
- Syntheses confirmation
- Product deformulation
- Enhanced method development with molecular weight-based peak tracking
Features:
- Interactive diagnostics software for worry-free system and fluidics optimization and performance checks with IntelliStart Technology
- 1 pg sensitivity with either ESI or APCI
- 10,000 Da/sec scan speeds up to 2,000 Da for full compatibility with seconds-wide UPLC peaks
- Simple upkeep and minimal bench space requirement
- Dual orthogonal sampling ionization with ZSpray source
- Rapid polarity switching and multi-mode ionization with simultaneous APCI and ESI for comprehensive compound analyses in a single injection, with ESCi Technology
- Multiple detection strategies available with supported Tunable UV (TUV), Photodiode Array (PDA), and Evaporative Light Scattering (ELS) optical detectors
- Control and data acquisition with Empower or MassLynx Software
- Optional APPI(Atmospheric Pressure PhotoIonization)
- Optional application managers available
