| Item | |
| Analytical input range | -0.25 to 2.25 Volts |
| Total input range (no damage) | +/- 40.0 volts (continuous) |
| Common mode voltage range | +/- 3.0 volts |
| Common mode rejection ratio (60Hz) | 70 dB minimum |
| Input bandwidth | 100 Hz |
| Power consumption | 750 mW (typical) |
| Voltage accuracy | Output within 1% of input |
| Impedance (common mode) | 500 K ohm, +/- 1%, minimum |
| Impedance (differential) | 2 M ohm +/- 1%, minimum |
| Nonlinearity | 0.01% of full scale |
| Precision | +/- 0.1% for inputs greater than 0.5 mV |
| Difference in output | +/- 1% maximum |
| Unit-to-unit reproducibility | +/- 1% difference in outputs |
| Buffer capacity | 225 Kb |
| Operating temperature range | 4 to 40°C (39.2 to 104°F) |
| Operating humidity range | 10 to 90% noncondensing |
| Storage temperature range | -40 to 70 °C (-40 to158 °F) |
| Storage humidity range | 0 to 100%, noncondensing |
| Vibration and shock | Negligible |
| Data format | Input = 8 bits, parallel |
| Electrical signal characteristics | TTL compatible, all 8 bits -VIH=2.0 Volts, maximum -VIL= 0.8 Volts, minimum IIH= 20 µA, maximum II=0.1 mA maximum |

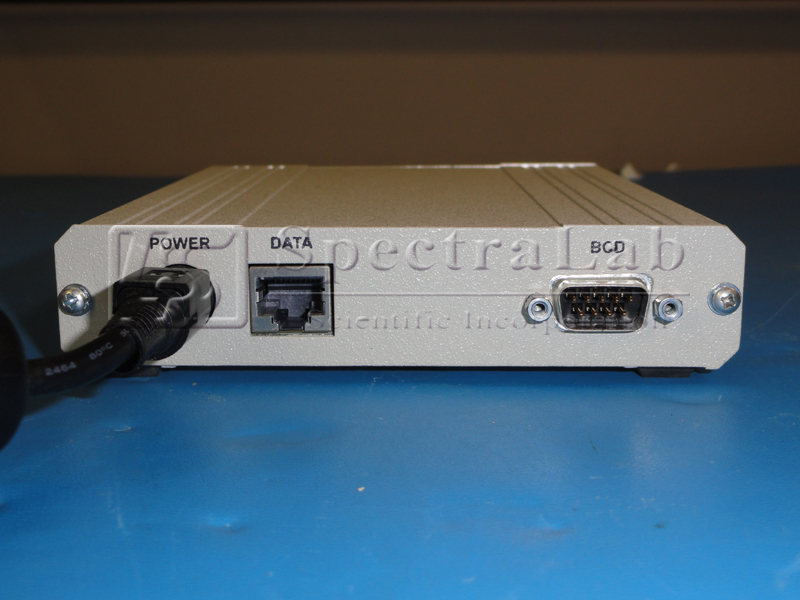

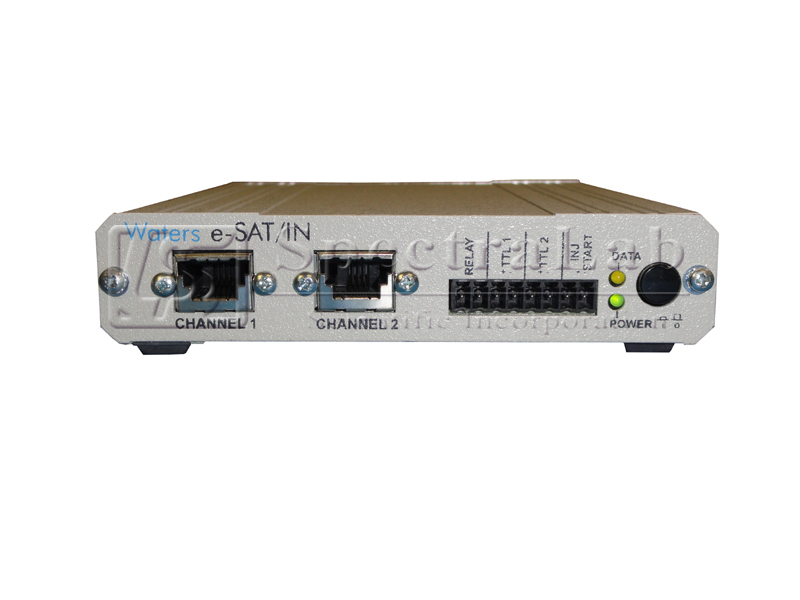

This refurbished Waters e-SATIN is in great condition. It has been tested at SpectraLab Scientific.
A 90-day warranty is included.
