This refurbished Waters NanoAcquity UPLC System with Waters ACQUITY TUV includes the following:

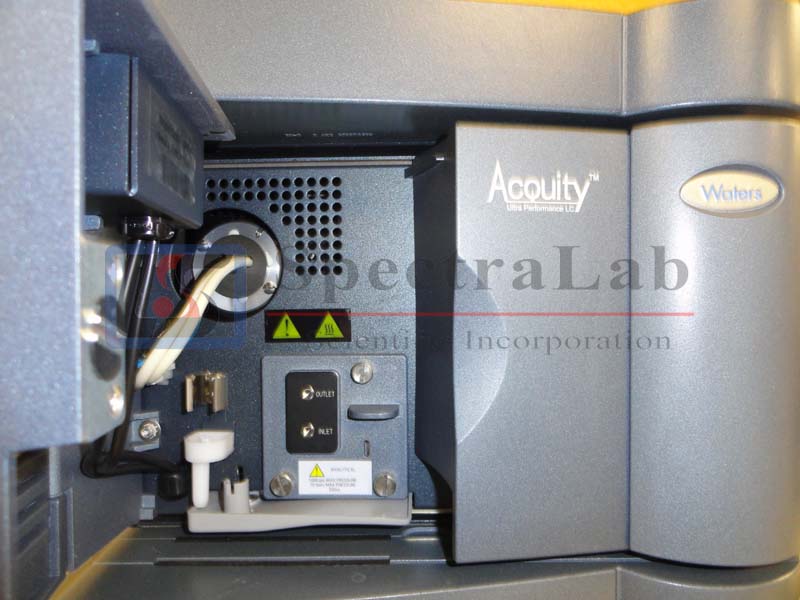

- TUV Detector

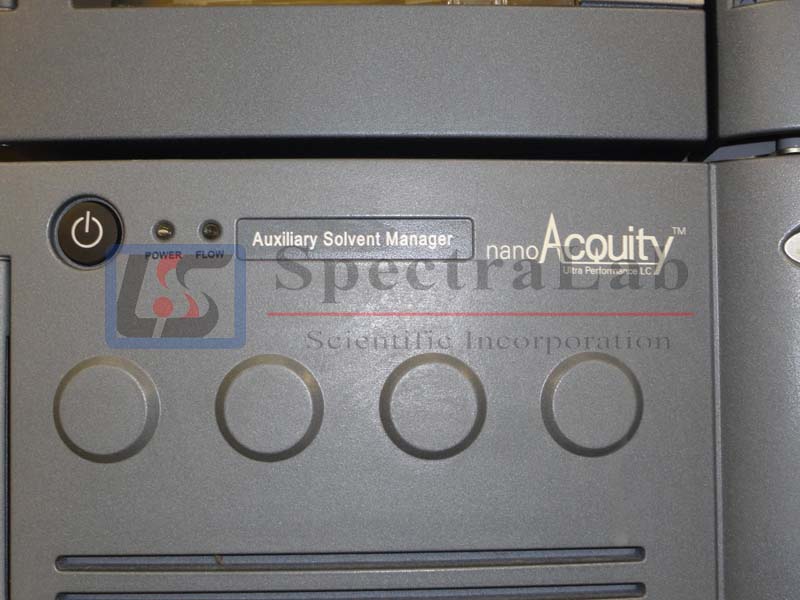

- Auxiliary Solvent Manager

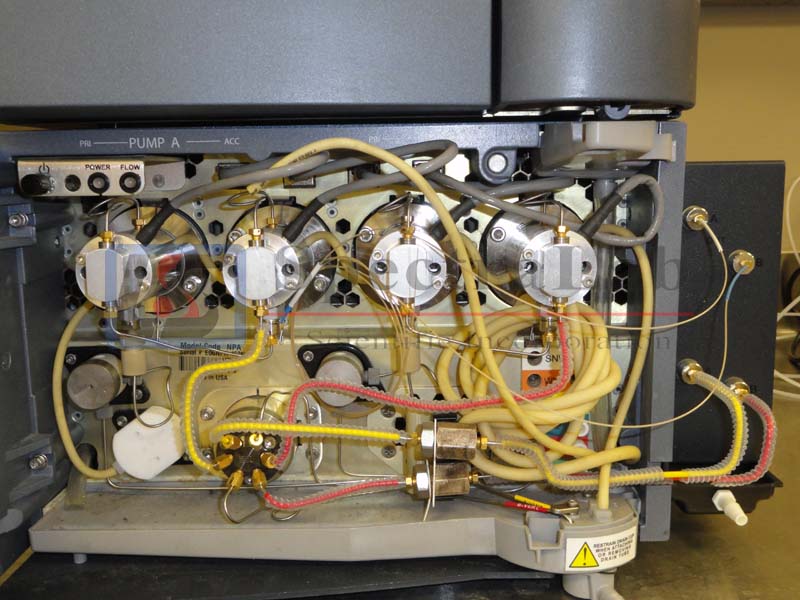

- Binary Solvent Manager

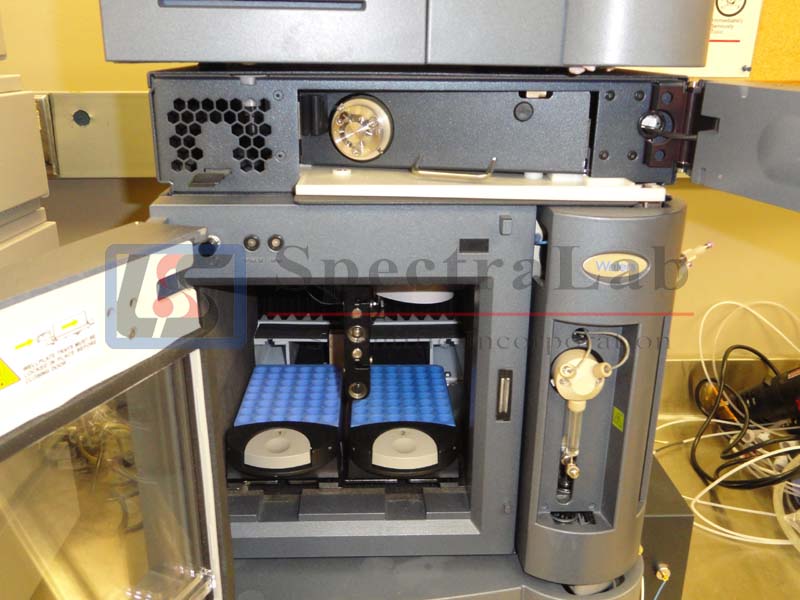

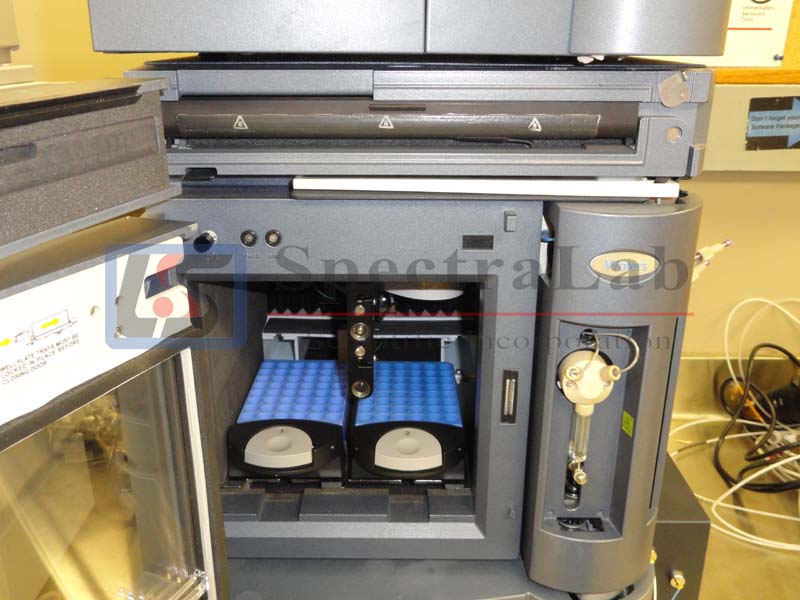

- Sample Manager with column oven
- Waters Sample Tray
- Necessary cables for full operation
Maximum resolution – optimized system to drive 1.7 µm BEH particle technology to yield maximum peak capacity for complex mixtures.
Maximum reproducibility – direct nanoflow control and a novel, movable heating and trapping module for <0.25-minute standard deviation run-to-run reproducibility,even overlong gradients.
Maximum throughput – BEH Technology columns enable faster gradient separations for simple mixtures, or when preforming targeted analyses without compromising resolution.
Robustness – Nano-scale columns and fittings (PEEK, 1/32 stain-less steel and goal coating)provide reliable operation for up to 10,000 psi, with novel pressure trapping.
Ease-of-use – Direct gradient control enables minimized tubing assembles and simplified loading and trapping schemes.
Enhanced on-board diagnostics – Efficiently monitor system performance.
Combine with any MS – Control the NanoAcquity UPLC system from your Waters, Thermo Fisher Scientific,or ABI/MDS SCIEX mass spectrometer software platforms.
UPLC and HPLC – Compatible with a wide range of conventional nano-scale columns with a flow range from 200 nL/min to 100 µL/min.
| Wavelength range | 190 to 700 nm |
| Wavelength accuracy | +1 nm (via patented2 Erbium filter) |
| Linearity range | Deviation at 2.5 AU <5%, propylparaben, at 257 nm |
| Baseline noise | 6.0×10-6 AU, at 230 nm, 10 mm shunt cell, 1.0 second filter time constant |
| Drift | <5.0×10-4 AU/hour/°C at 230 nm |
| Sampling rate | Up to 80 points/s |
| Unattended operation | Leak sensors, full diagnostic data captured through console software |
| Light source | Prealigned, intelligent technology Deuterium lamp (Warranty for one year or 2000 hrs, whichever comes first) |
| Flow cell design | Light guiding UPLC flow cell with intelligent chip technology |
| Path length | 10 mm (analytical flow cell) |
| Cell volume | 500 nL (analytical flow cell) |
| Pressure limit | 1000 psi (all flow cells) |
| Wetted materials | 316 stainless steel, fused silica, Teflon,AF,PEEK |
| Optical bandwidth | 5 nm |
This Waters NanoAcquity UPLC with ACQUITY TUV Detector is in good condition.
A 90 day warranty is included.
