The Two-Position Six-Port Switching Valve is motorized standalone unit ready-to-use in applications involving automated switching for sample enrichment, two-column selection and sample clean-up.
Features:
- Automates multiple injector and switching tasks
- Digital display of valve position
- Positions selected remotely by built-in instrument compatible electronic interface or locally by pushbutton
Operating Specification | |
Liquid Contacts | Stainless steel (or PPEK) and alumina ceramic |
Port Size | Accepts 10-32 male threaded fittings |
Flow Passage Diameters | 0.5-mm (0.018 inches) and 0.6-mm (0.024 inches) |
Volume in flow Passages | Stator (includes stator face assembly) – 2.2 µL/hole Rotor Seal – 0.4 µL/groove |
Maximum Pressure | 35 MPA, 345 bar, 5000 psi |
Communication | 1-line TTL |
Dimensions | Width: 3.10 in. (78.74 mm) Height: 5.75 in. (146.0 mm) Depth: 7.75 in. (196.85 mm) with connecting fittings |

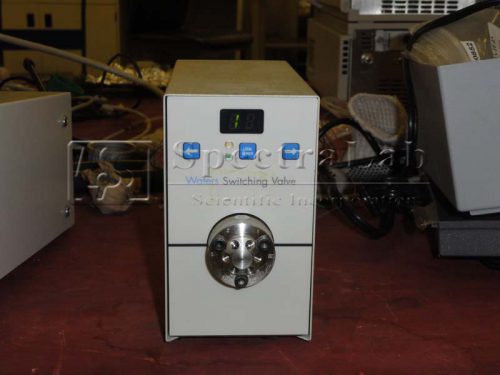

This refurbished Waters Two-Position Six-Port Switching Valve is in great condition. It has been tested at SpectraLab Scientific.
A 90 day warranty is included.
